This Is The New SAGCP Worklog.

When you look for wkf to GC wiring, some of them shows the options to doing so, they all mention breakout boards, some mention with links to some of them.

FFC has pitches. The one spiicy showed one of wider pitch of .7mm where the wiikey cable uses .5mm

The smallest breakout board newhavendisplay has that is .5mm pitch is the one with 36 pins, and is already soldered with a connector. You could always trim it to minimum amount of pins.

I wish you luck with further case modding. The most creative, and sometimes fun, part, but also the most noticeable.

I hope you know that DOL-101 boards need a pretty steady voltage (around 12v) to run so you will need something like a 14.8 volt battery pack. And just a tip for you: If you end up with an NTSC cube and a PAL PSone screen make sure to S-Video mod it!

no i got a ebay ntsc 5" tft screen. but thanks. i'm looking for a board now. i want a DOL-001, if anyone can help me out and sell me one for $15 that would help.

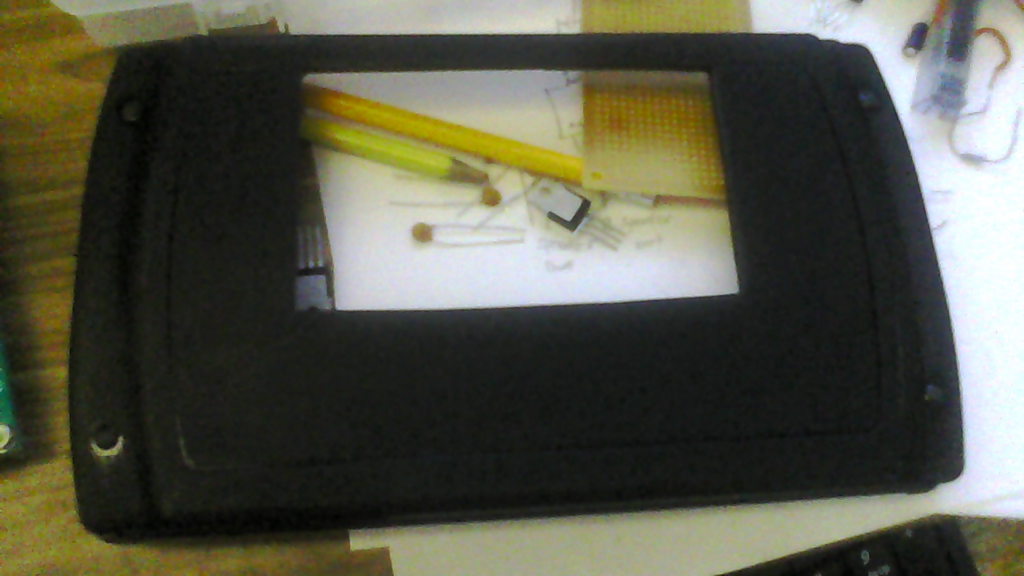

Looking good, the screen hole is a bit higher than I would have put it, but this isn't mine, now is it?
