hey all just starting a worklog for my GCp
gonna do an OMGWTF cut on my board soon but I've run into a problem when testing suddenly

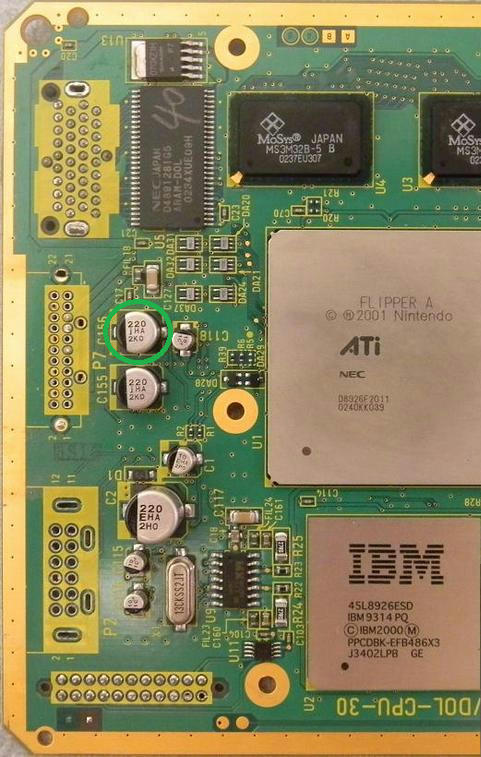

I lost video very randomly I desoldered all of the capacitors (the big ones) lost video and audio (expected) got video back with the composite on the chip but the signal was weird, after rereading Ashen's guide I saw the one of the caps needed to be resoldered in and that it would take care of the issue however upon soldering the cap in I lost video again, took another look at it and can't figure out why, I checked the direction of the cap and looked at the chip and my wires all looked well, also did some testing with my multimeter and all checks out with my portion of the wiring so why no video D:
