Ok guys I don't know how many of you are currently building PS2p's or want to in the future, but I found a controller which is a single board, with no membrane. The controller is a cheap 10 bucks, pinouts are labeled on the board, and soldering onto it is a piece of cake. This is what the controller looks like on the outside: http://www.gamestop.com/ps2/accessories ... ller/28592
The only flaw is the DPad, but that can be replaced easily.
This is a picture of the front of the board:
Back of the board:

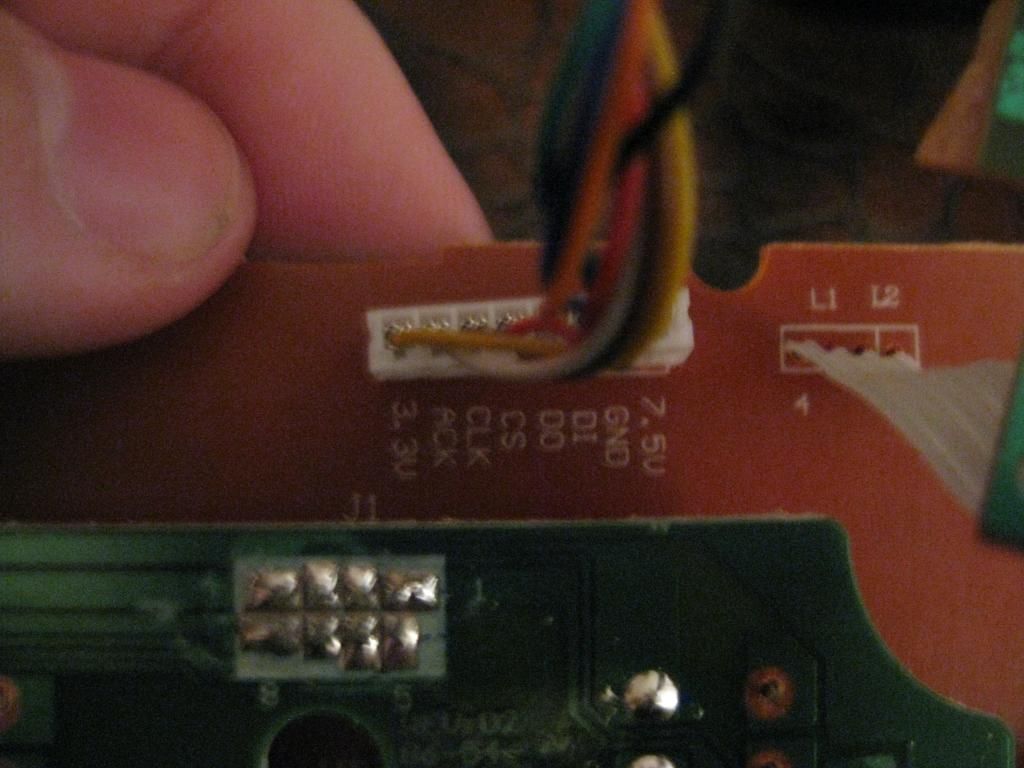

Board Pinouts:

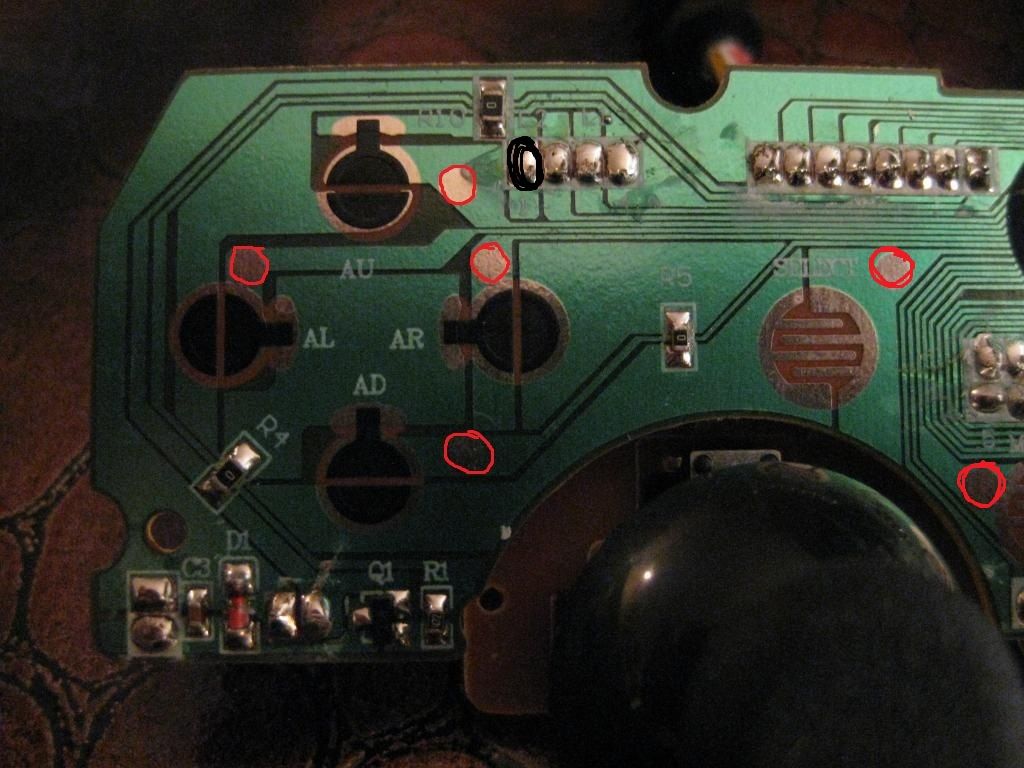

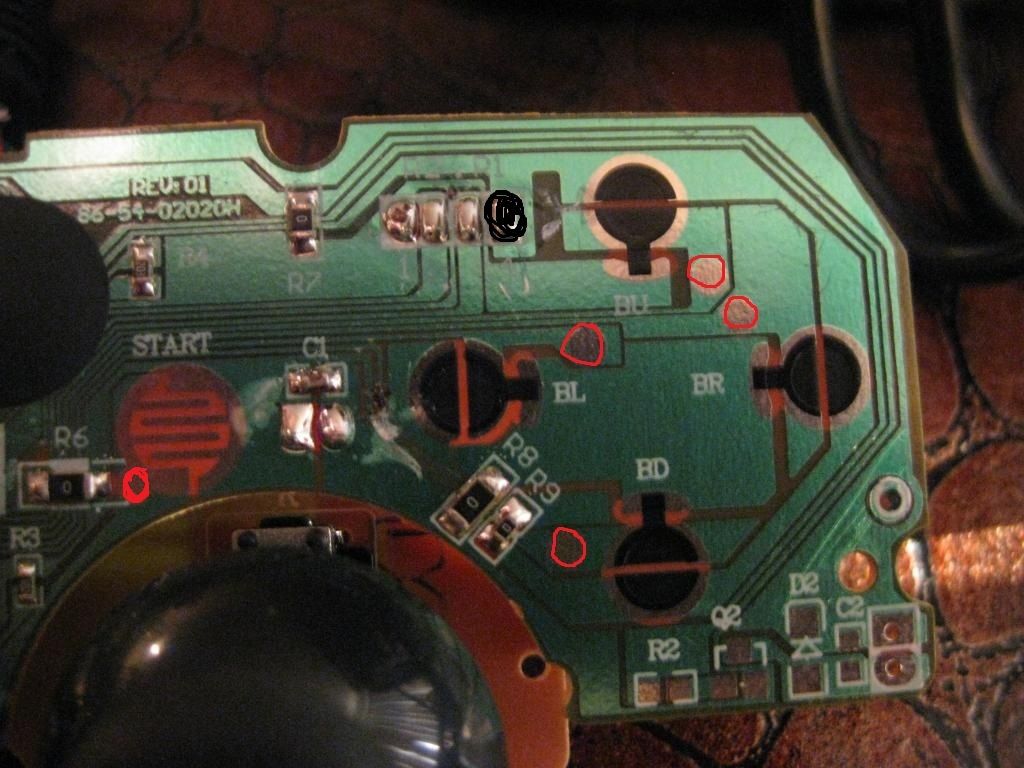

For the buttons, you are going to want to solder one wire onto the points circled in red, then one to ground(ground I used was the point circled in black, but you can find plenty more ground points on this board)
(Left Half)
(Right Half)
This controller is extremely easy to use, and can be lightly modded to become super thin if you desolder the analog stick board and rewire it.
Any questions, let me know! I hope this helped out some people!
PS: In some pictures, the top of the board is labeled "REV 01", well have no fear, gamestop only made one revision of the controller! They used to have a wireless one too but I can't find it anywhere.
The only flaw is the DPad, but that can be replaced easily.
This is a picture of the front of the board:
Back of the board:
Board Pinouts:
For the buttons, you are going to want to solder one wire onto the points circled in red, then one to ground(ground I used was the point circled in black, but you can find plenty more ground points on this board)
(Left Half)
(Right Half)
This controller is extremely easy to use, and can be lightly modded to become super thin if you desolder the analog stick board and rewire it.
Any questions, let me know! I hope this helped out some people!
PS: In some pictures, the top of the board is labeled "REV 01", well have no fear, gamestop only made one revision of the controller! They used to have a wireless one too but I can't find it anywhere.
